K36 TYPE
DC Power film capacitor. Metallized polypropylene film. Aluminium case enclosure. Epoxy resin filled. High power applications. High reliability.
|
Capacitance (µF)
24 µF - 5600 µF |
Voltage
600 VDC - 4000 VDC |
Temperature (°C)
-40°C +85°C |
Useful Life (hours)
100.000 |
| Specifications |
|
K37 TYPE
DC Power film capacitor. Metallized polypropylene film. Cylindrical plastic case. Epoxy resin filled.
|
Capacitance (µF)
50 µF - 280 µF |
Voltage
500 VDC - 1100 VDC |
Temperature (°C)
-40°C +85°C |
Useful Life (hours)
100.000 |
| Specifications |
|
KE2 TYPE
DC Power film capacitor. Miniaturized metallized polypropylene film. Plastic box with pin terminals. Epoxy resin filled.
|
Capacitance (µF)
1.0 µF - 220 µF |
Voltage
500 VDC - 1200 VDC |
Temperature (°C)
-40°C +105°C |
Useful Life (hours)
100.000 |
| Specifications |
|
K1F TYPE
DC Power film capacitor. Miniaturized metallized polypropylene film. Plastic box with pin terminals. Epoxy resin filled. Suitable for harsh environment. THB grade IIIB compliant.
|
Capacitance (µF)
1 µF - 200 µF |
Voltage
450 VDC - 1200 VDC |
Temperature (°C)
-55°C +105°C |
Useful Life (hours)
100.000 |
| Specifications |
|
K3F TYPE
DC Power film capacitor. Miniaturized metallized polypropylene film. Plastic box with pin terminals. Epoxy resin filled. Suitable for harsh environment. AEC-Q200 compliant.
|
Capacitance (µF)
1 µF - 220 µF |
Voltage
500 VDC - 1200 VDC |
Temperature (°C)
-55°C +105°C |
Useful Life (hours)
100.000 |
| Specifications |
|
K4F TYPE
DC Power film capacitor. Miniaturized metallized polypropylene film. Plastic box with pin terminals. Epoxy resin filled. Suitable for harsh environment. AEC-Q200 compliant.
|
Capacitance (µF)
1 µF - 220 µF |
Voltage
450 VDC - 1100 VDC |
Temperature (°C)
-55°C +125°C |
Useful Life (hours)
100.000 |
| Specifications |
|
K9E TYPE
DC Power film capacitor, snubber type. Miniaturized metallized polypropylene film and double-side metallized film with polyester tape wrapping filled with resin and tinned copper wires.
|
Capacitance (µF)
0.01 µF - 220 µF |
Voltage
450 VDC - 1100 VDC |
Temperature (°C)
-55°C +125°C |
Useful Life (hours)
100.000 |
| Specifications |
|
KE4 TYPE
DC Power film capacitor, snubber type. Miniaturized metallized polypropylene film. Plastic box with pin terminals. Epoxy resin filled.
|
Capacitance (µF)
0.001 µF - 4.7 µF |
Voltage
630 VDC - 2000 VDC |
Temperature (°C)
-40°C +105°C |
Useful Life (hours)
100.000 |
| Specifications |
|

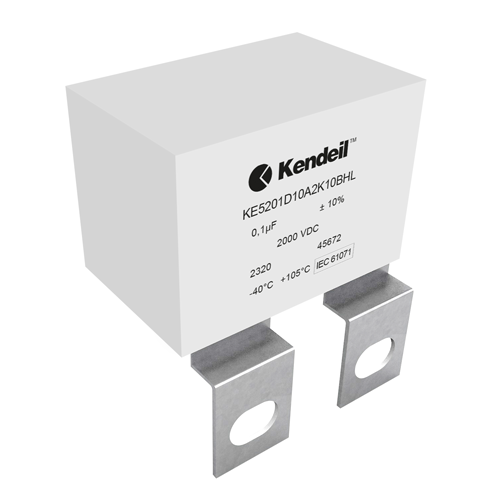

KE5 TYPE
DC Power film capacitor, snubber type. Miniaturized metallized polypropylene film. Plastic box with lug terminals. Epoxy resin filled.
|
Capacitance (µF)
0.1 µF - 4.0 µF |
Voltage
850 VDC - 2000 VDC |
Temperature (°C)
-40°C +105°C |
Useful Life (hours)
100.000 |
| Specifications |
|

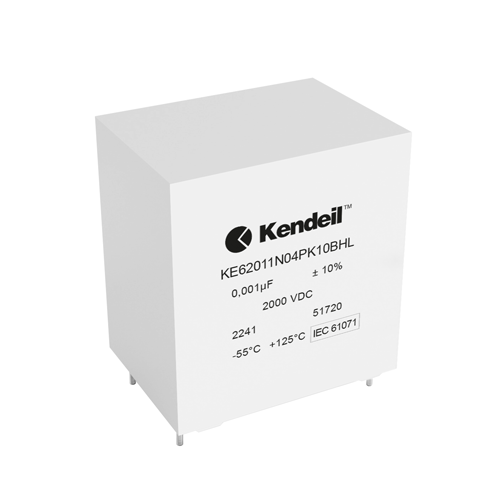

KE6 TYPE
DC Power film capacitor, snubber type. Miniaturized metallized polypropylene film. Plastic box with pin terminals. Epoxy resin filled. AEC-Q200 compliant.
|
Capacitance (µF)
0.001 µF - 4.7 µF |
Voltage
630 VDC - 32000 VDC |
Temperature (°C)
-55°C +125°C |
Useful Life (hours)
100.000 |
| Specifications |
|

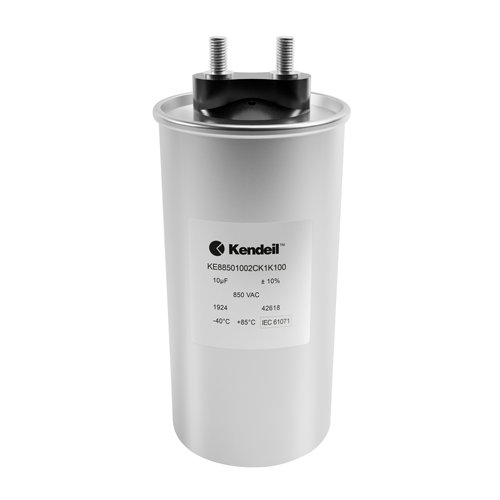

KE8 TYPE
AC Power film capacitor, filter type. Miniaturized metallized polypropylene film. Aluminium case enclosure. Soft PU resin filled.
|
Capacitance (µF)
10 µF - 600 µF |
Voltage
250 VAC - 850 VAC |
Temperature (°C)
-40°C +85°C |
Useful Life (hours)
100.000 |
| Specifications |
|

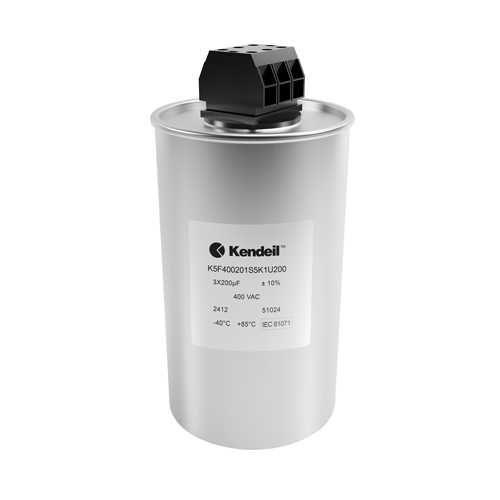

K5F TYPE
3-phases AC Power film capacitor, filter type. Miniaturized metallized polypropylene film. Aluminium case enclosure. Soft PU resin filled.
|
Capacitance (µF)
3x8 µF - 3x335 µF |
Voltage
230 VAC - 850 VAC |
Temperature (°C)
-40°C +85°C |
Useful Life (hours)
100.000 |
| Specifications |
|
KE9 TYPE
AC Power film capacitor, filter type. Miniaturized metallized polypropylene film. Plastic box with pin terminals. Epoxy resin filled. THB grade IIIB compliant.
|
Capacitance (µF)
0.1 µF - 60 µF |
Voltage
180 VAC - 760 VAC |
Temperature (°C)
-50°C +105°C |
Useful Life (hours)
100.000 |
| Specifications |
|

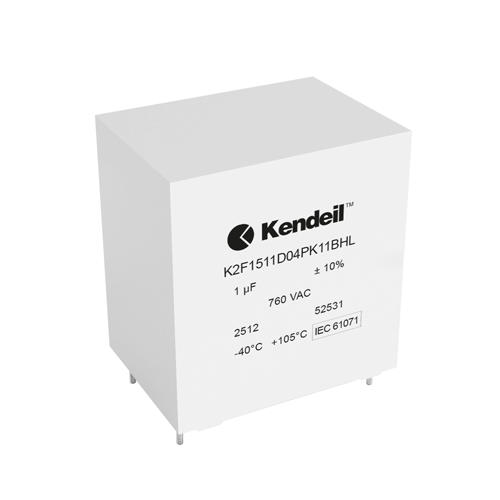

K2F TYPE
AC Power film capacitor, filter type. Miniaturized metallized polypropylene film. Plastic box with pin terminals. Epoxy resin filled.
|
Capacitance (µF)
0.15 µF - 40 µF |
Voltage
160 VAC - 450 VAC |
Temperature (°C)
-40°C +105°C |
Useful Life (hours)
100.000 |
| Specifications |
|

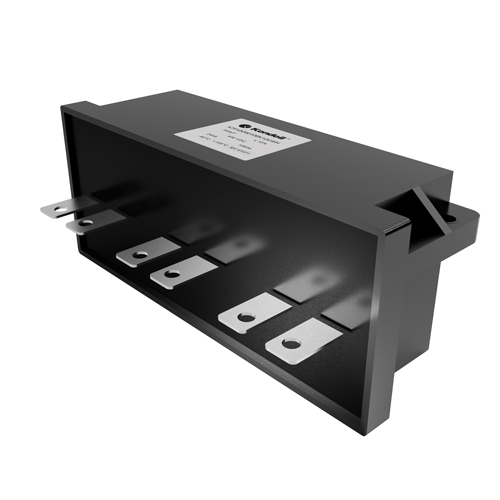

K7F TYPE
DC modular metallized polypropylene film in customized PPS case. Very high dielectric strength.
|
Capacitance (µF)
300 µF - 1200 µF |
Voltage
450 VDC - 1200 VDC |
Temperature (°C)
-40°C +105°C |
Useful Life (hours)
100.000 |
| Specifications |
|
